Solid Pcd Insert Model Size 1308 , Milling Inserts Standard And Custom Made

  • 1
  • 2

Brand Name : ZZBetter

Model Number : Flat PDC insert 1308

Certification : ISO

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 pcs per month

Delivery Time : 7-15 days

Packaging Details : Carton box

Material : Tungsten carbide and PDC

Shape : Flat or dome or conical

Usage : For mining

Color : siliver and black

Other : For oil field

Size : Standard or as drawing

Contact Now

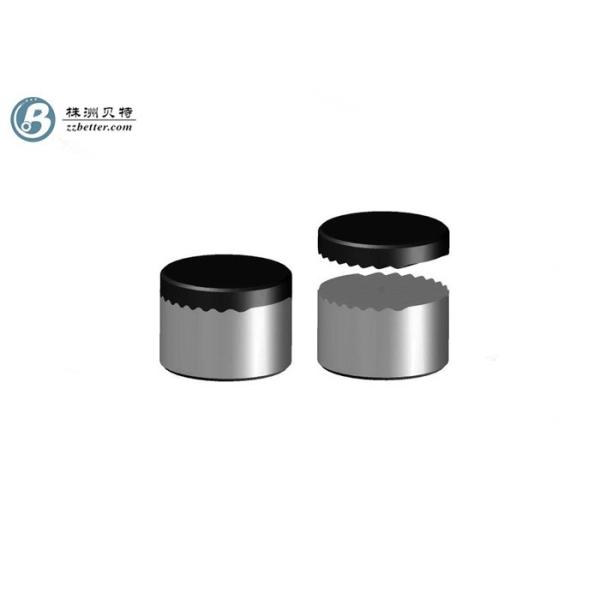

Model size 1308 flat PDC insert with great wear resistance for mining

ZZbetter PDC inserts are mainly used mining picks and DTH hammers, which can be applied for drilling hard formations and abrasive formations.

ZZBetter can produce different types of PDC insert Products, the specifications of D PDC inserts are from Φ5mm- Φ25mm.

Flat Head PDC insert details:

TYPE D(mm) H(mm) Height diamond(mm) Diamond chamfer Carbide chamfer
1304 13.44 4.5 2.o 0.35*45°±0.1 0.4*45°±0.1
1308 13.44 8 2.0 0.35*45°±0.1 0.4*45°±0.1
1313 13.44 13.2 2.0 0.35*45°±0.1 0.4*45°±0.1
1613 15.88 13.2 2.0 0.4*45°±0.1 0.6*45°±0.1
1616 15.88 16 2.0 0.4*45°±0.1 0.6*45°±0.1
1913 19.05 13.2 2.0 0.45*45°±0.1 0.6*45°±0.1
1916 19.05 16 2.0 0.45*45°±0.1 0.6*45°±0.1

If you need more information, PLS feel free to Nini, what's app: +86 151 7333 3600
